Compressors

Description:

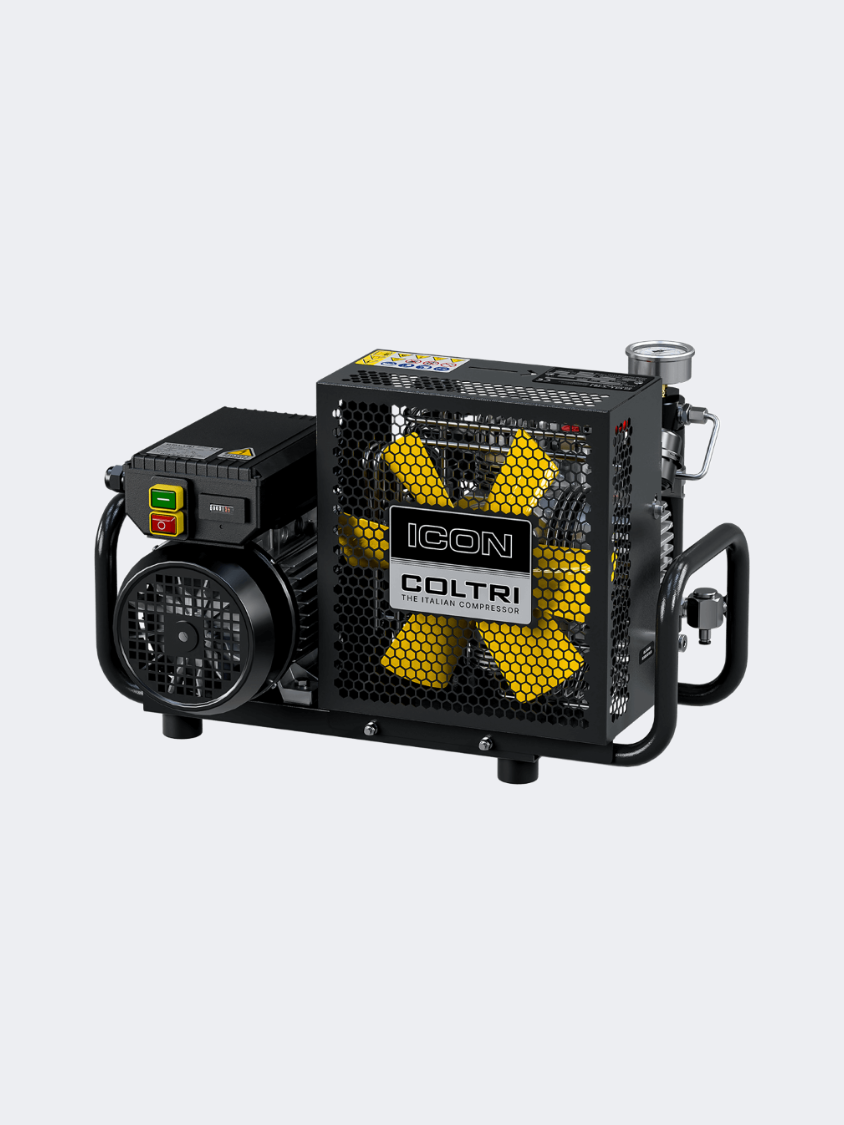

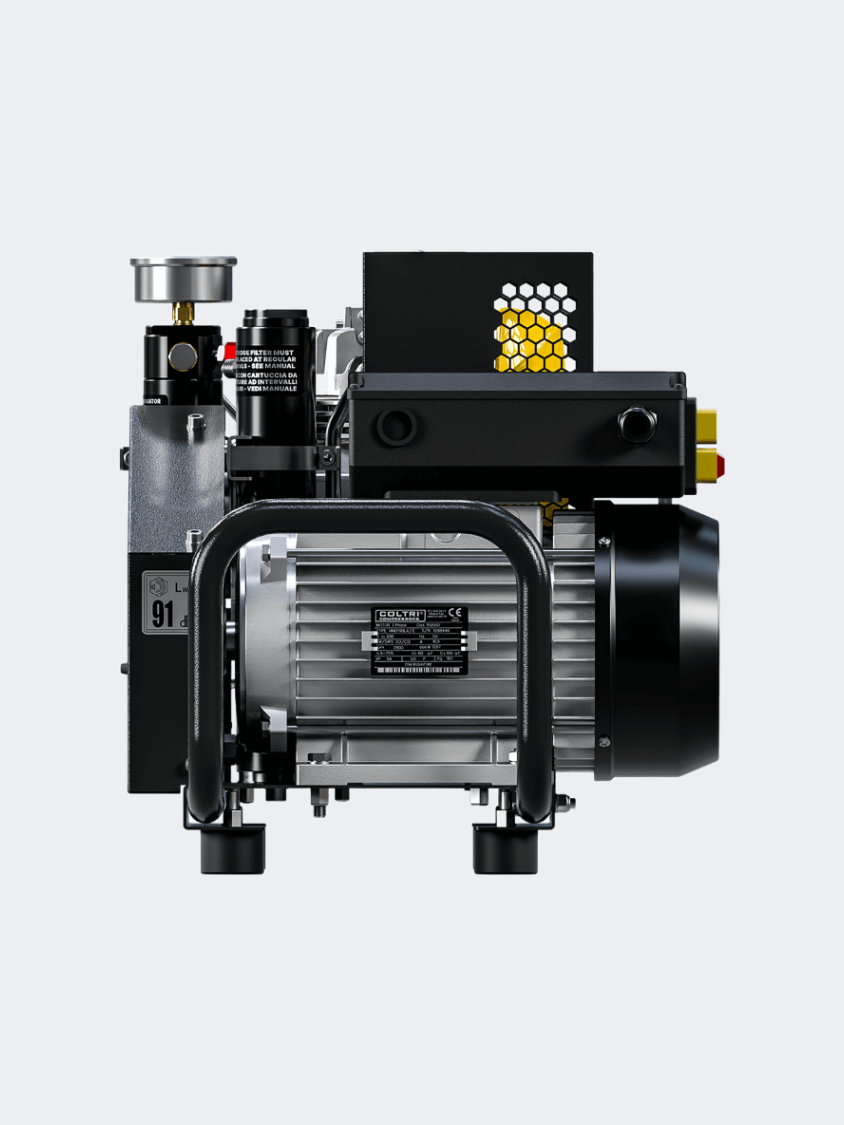

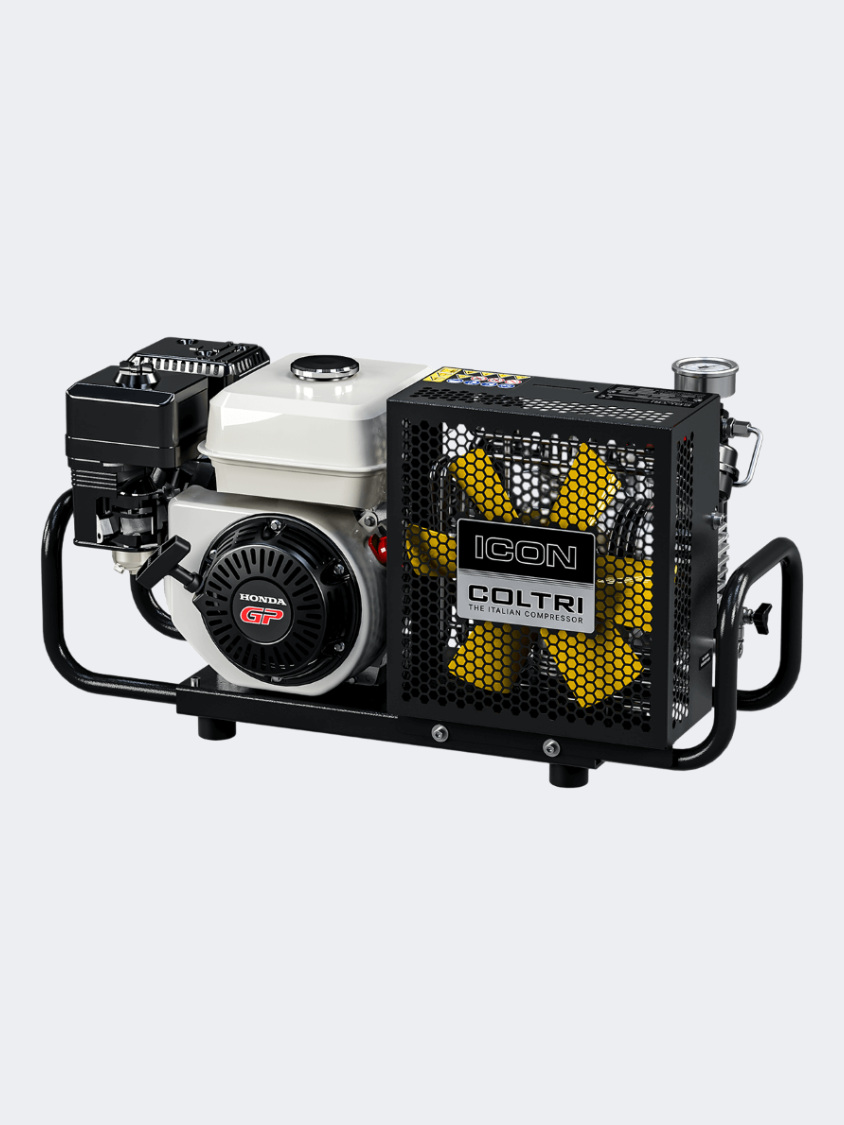

Icon LSE is one of the most widely used portable compressors in the world. By virtue of their small size and low weight, the models are perfect for very different needs: high-pressure breathing air for the diving world, recreational activities, fire services, and paintball facilities.

Standard equipment includes a hose filling connection with operating pressures from 232 to 330 bar. The user experience is highly customizable with the various options available such as pressure maintenance valve, automatic condensate drain and autostop. Frames are also available in stainless steel.

Highlights:

• Engine:
  Electric single-phase 230 V, 50 Hz
• Scope:
  100 l/min - 6 m3/h - 3.5 CFM
• Charging time:
  20 min. (10-liter cylinder 0-200 bar)
• Operating pressure:
  Max 330 bar - 4786 psig
• Net weight (appr.):
  38 kg - 83 lbs
• Dimensions (W x D x H):
  61 x 37 x 39 cm - 24" x 14.5" x 15.3"

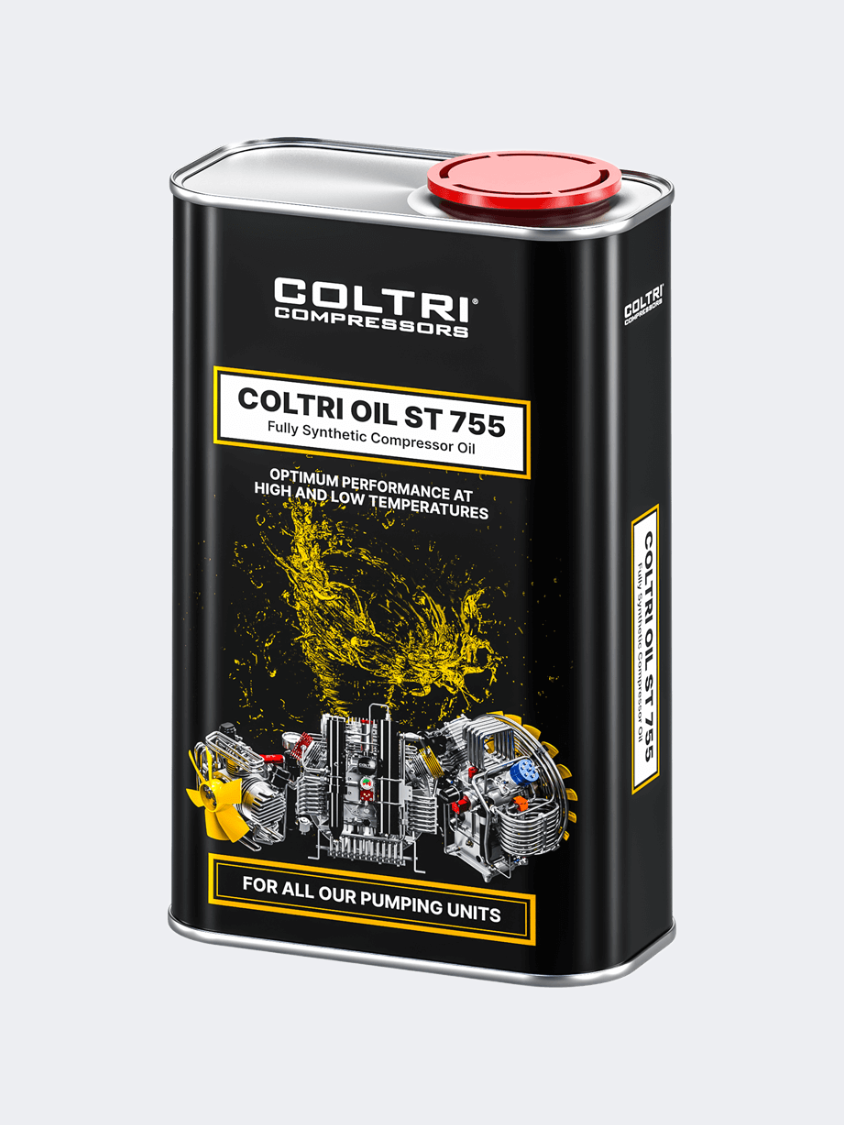

COLTRI OIL ST 755 is a fully synthetic oil specifically developed for long durations of process gas compressor lubrication and especially for breathing air. It provides outstanding performance in all types of compressors. Coltri Oil ST 755 is based on a long and historical experience, more than 70 years, in the industrial, commercial and military sectors, giving the user the opportunity to obtain appreciable economic benefits combined with enormous technical advantages. The lubricant formula Coltri Oil ST 755 is an optimized blend of synthetic hydrocarbons and pure synthetic esters with selected and specific additives. It is produced exclusively in our state-of-the-art Italian industrial plants.



Coltri Oil ST 755 extends oil change intervals up to 8 times!

The synthetic lubricant Coltri Oil ST 755 has a far longer service life than mineral lubricants due to the exceptional thermal and oxidation stability of its components.

Coltri Oil ST 755 reduces consumption of oil by 30% up to 50%!

At 100° C, it has extremely low volatility compared to a mineral oil of the same viscosity. This in combination with a lower operating temperature, due to better lubrication, leads to a significant reduction in consumption with less inventory commitment.

It extends the life of components by reducing power consumption.

In direct comparison between a mineral and Coltri Oil ST 755 reduces wear and extends the life of compressors due to a lower coefficient of friction and optimized anti-wear additives, resulting in less wear, shorter service intervals and lower costs.

It keeps machines clean thanks to its cleaning power.

Leaves no fouling and cleans up carbonaceous residues created by the use of mineral oils. The lubricant Coltri eliminates all carbonaceous deposits. The superior oxidation resistance and thermal stability of the synthetic components Coltri reduces the formation of carbon deposits: this means less maintenance, less downtime and great safety of use.

Coltri Oil ST 755 adheres with great tenacity to metal surfaces.

Due to the polarity of its special molecules, it minimizes wear and tear due to cold starts and harsh working conditions.

The best choice of lubricant for high temperatures.

Coltri Oil ST 755 possesses a wide temperature range (-15°C to +250°C) is therefore usable in all seasons.

The high temperature resistance characteristic allows efficient use at the highest temperature. There is no need for seasonal oil changes, thus reducing inventory and the potential risk of contamination with the wrong oils.

Coltri Oil ST 755 possesses a high point of ignition, flammability and self-ignition!

Synthetic lubricants Coltri significantly reduce the risk of accidental fires. With a flash point of about 60°C and auto-ignition temperatures of about 120°C higher than mineral oils on the market, with lower volatility and carbon mono-deposits, your margin of safety is significantly increased.

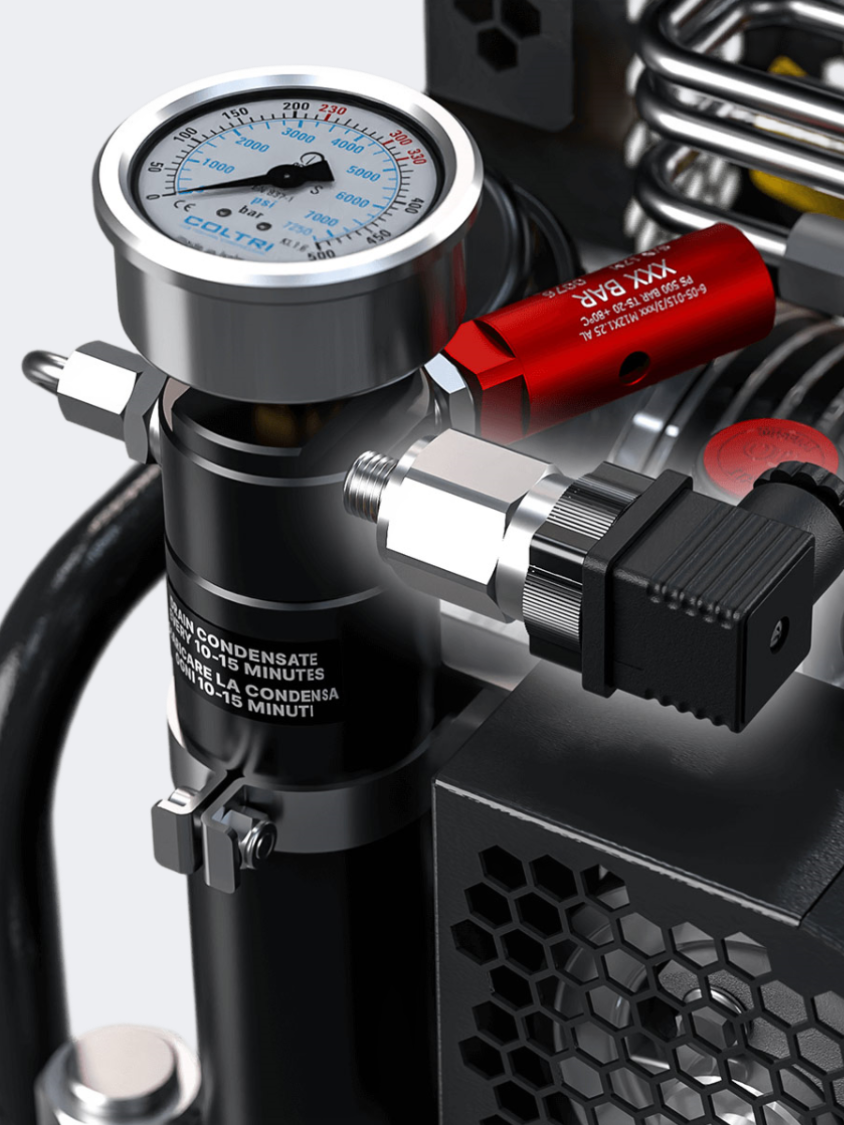

The compressor automatically shuts down when it reaches the final pressure.

Consisting of a 232-bar pressure switch with a 330-bar safety valve.

The compressor automatically shuts down when it reaches the final pressure.

Consisting of a 232-bar pressure switch with a 250-bar safety valve.

High-quality filtration solution for clean and safe breathing air.

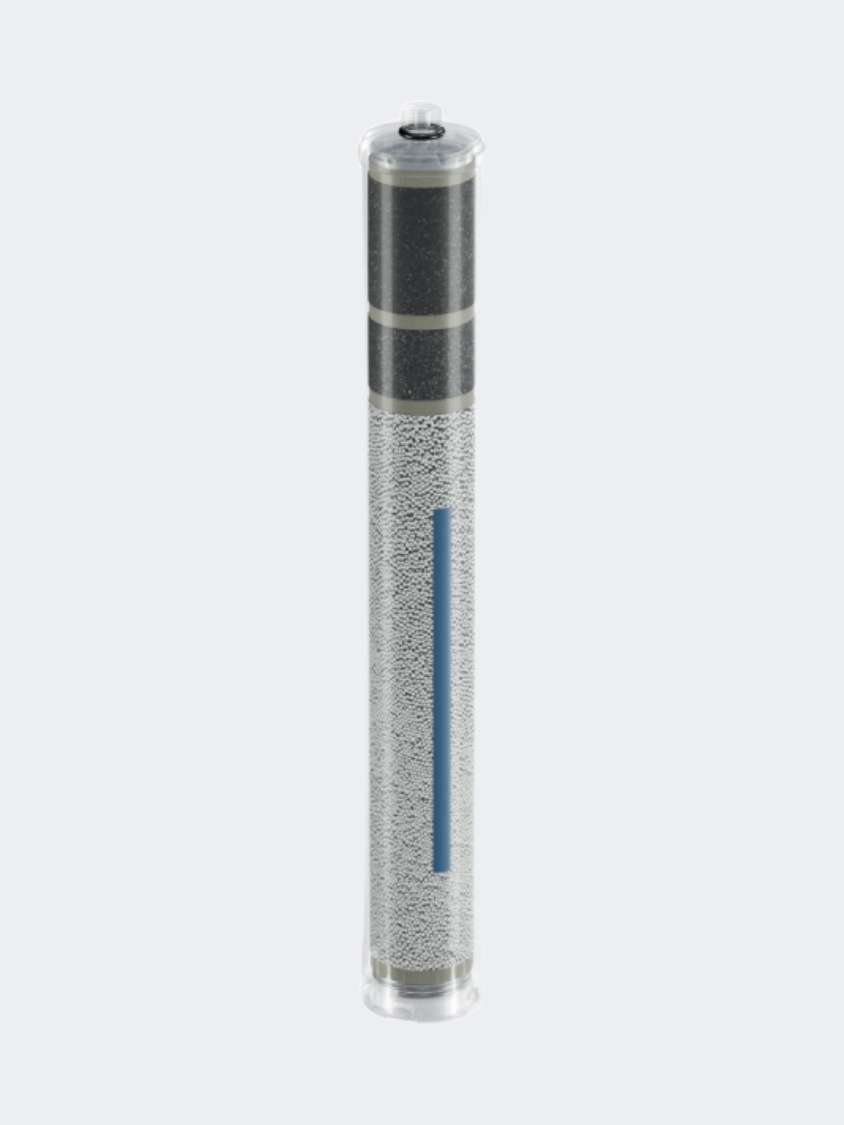

Coltri SC000440/PP MAXIFILTER is a high-performance filtration cartridge designed to ensure optimal breathing air quality. This polypropylene cartridge combines activated carbon and molecular sieve to effectively remove a variety of contaminants such as oil vapors, hydrocarbons, moisture and odors.

Main features:

Activated carbon: Absorbs oil vapors, hydrocarbons and odors.
Molecular sieve: Removes moisture from the air.
Polypropylene body: Durable and chemically resistant.
Compatibility: Suitable for various Coltri compressors.
Country of origin: Italy.
HTS code: 84213925.
Advantages:

High efficiency: Provides clean and safe breathing air.
Long-lasting operation: Durable polypropylene body ensures long service life.
Easy installation: Easy to replace and install.
Perfect for:

Diving centers.
Fire services.
For industrial use.
Anywhere where clean and safe breathing air is needed.

Molecular sieve. 1-liter can.

Molecular sieves are materials that can separate molecules based on size. This capability is based on the presence in the material of tiny pores of exact and uniform size, with a diameter between 3 and 10 Å depending on the material.

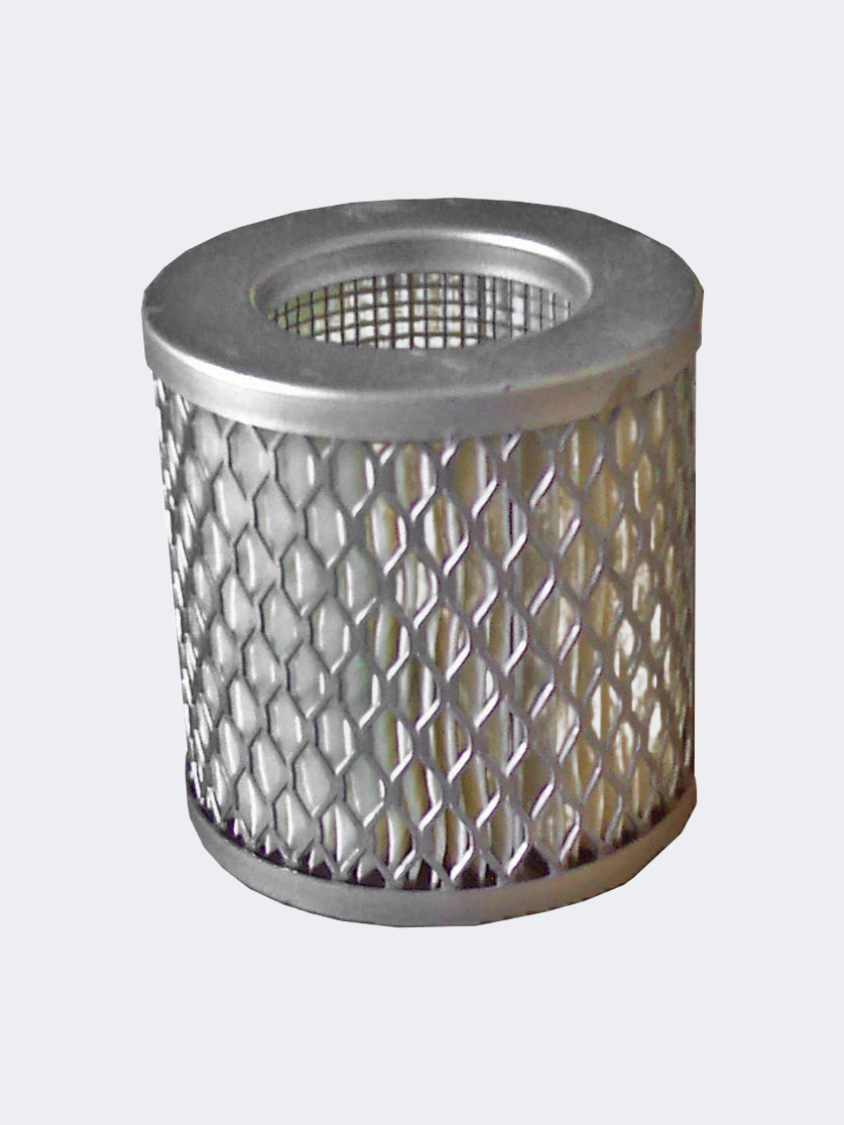

Air intake filter for Nuvair 7-9, Coltri MCH8-16, MCH26 & MCH32, American Airworks Fast 50-90, Max-Air 90, Posiedon compressors, and Bauer Part No. N00070.

2-5/8 in (67 mm) length x 2.5 in (65 mm) diameter.

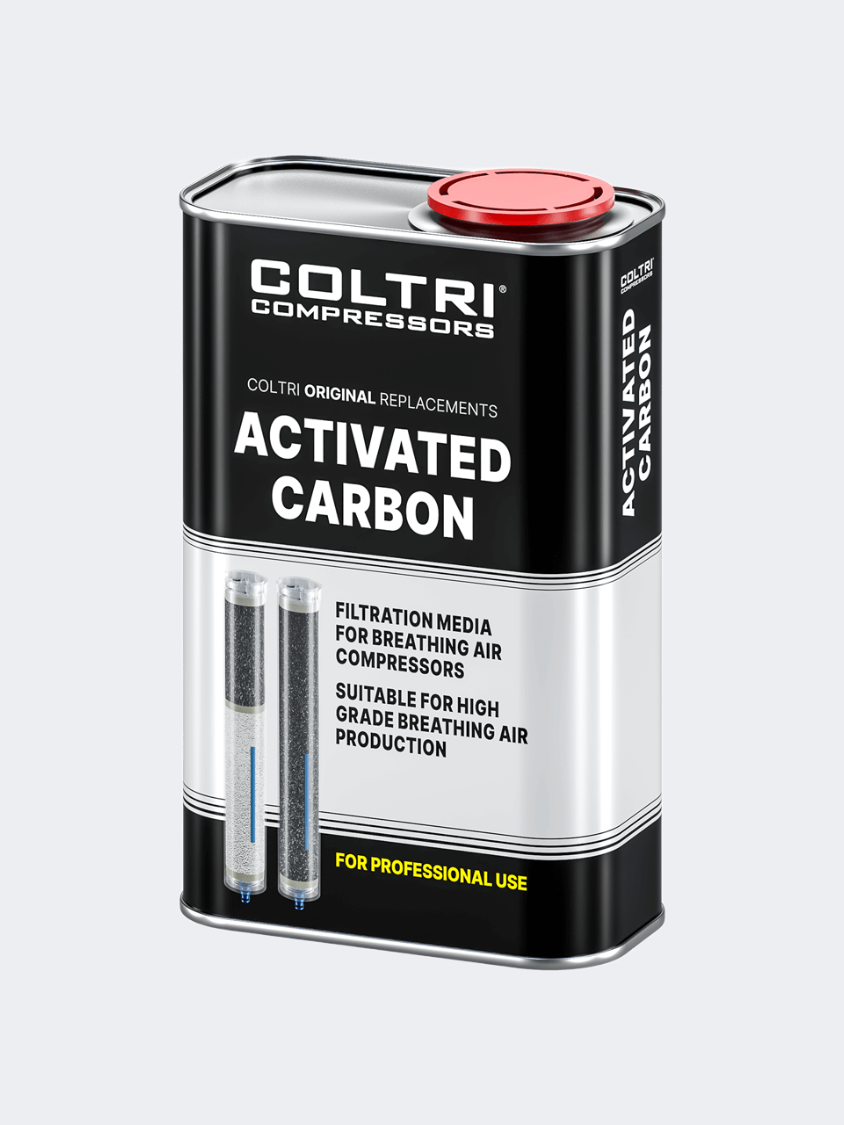

Activated carbon. 1-liter can.

It is a material containing mainly amorphous carbon. Due to its high specific area, activated carbon is able to hold many molecules of other substances within it, being able to accommodate these molecules on its extensive inner surface area.

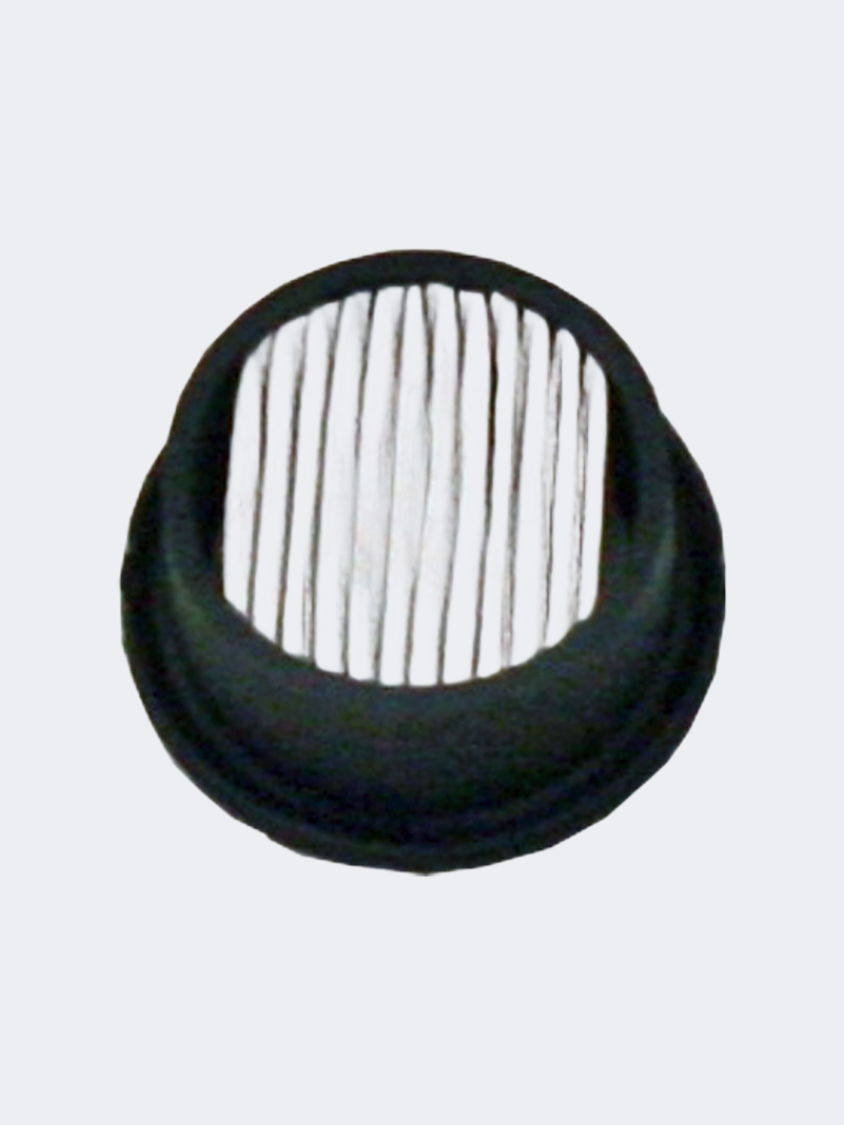

Air intake filter for Nuvair (3-3.5), Coltri (MCH6), American Airworks (Fast 35), Max-Air (35) and Nautica.

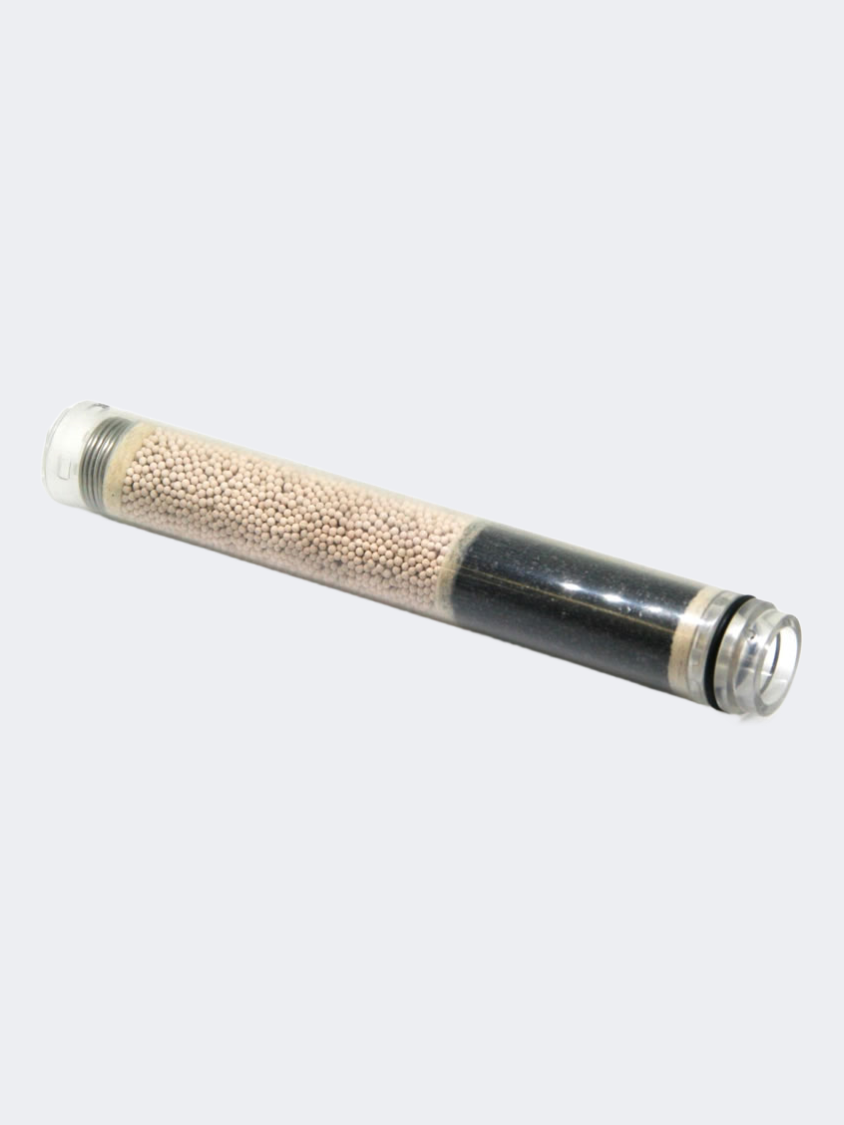

Disposable filter cartridge containing molecular sieve and activated carbon. Removes moisture, hydrocarbon, oil and taste/odor. Suggested for paintball and industrial use or as a pre-filter ahead of breathing air filters. Fits Nuvair 3-3.5, Coltri/Nuvair MCH6, American Airworks Fast 35, Max-Air 35 and Nautica compressors. Suitable replacement for Lawrence Factor X156212.

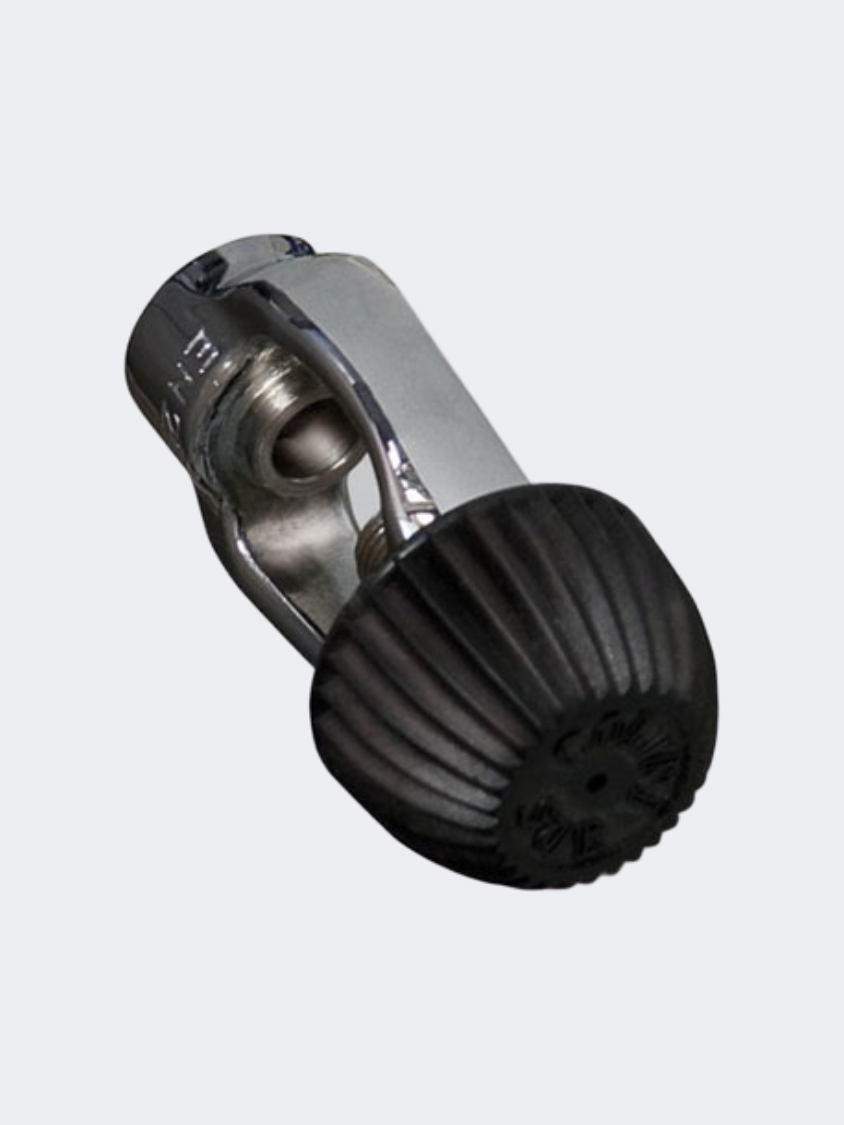

Converts a DIN 232 filling connection to an International (yoke) connection. Described by Coltri as "CONNECTOR DIN/INT, Reducer DIN232/INT, CONNECTOR DIN232/INT, ADAPTER DIN/INT, [RIDUTTORE DIN/INT], [ADATTATORE DIN/INT], and [RIDUTTORE DIN232/INT]".

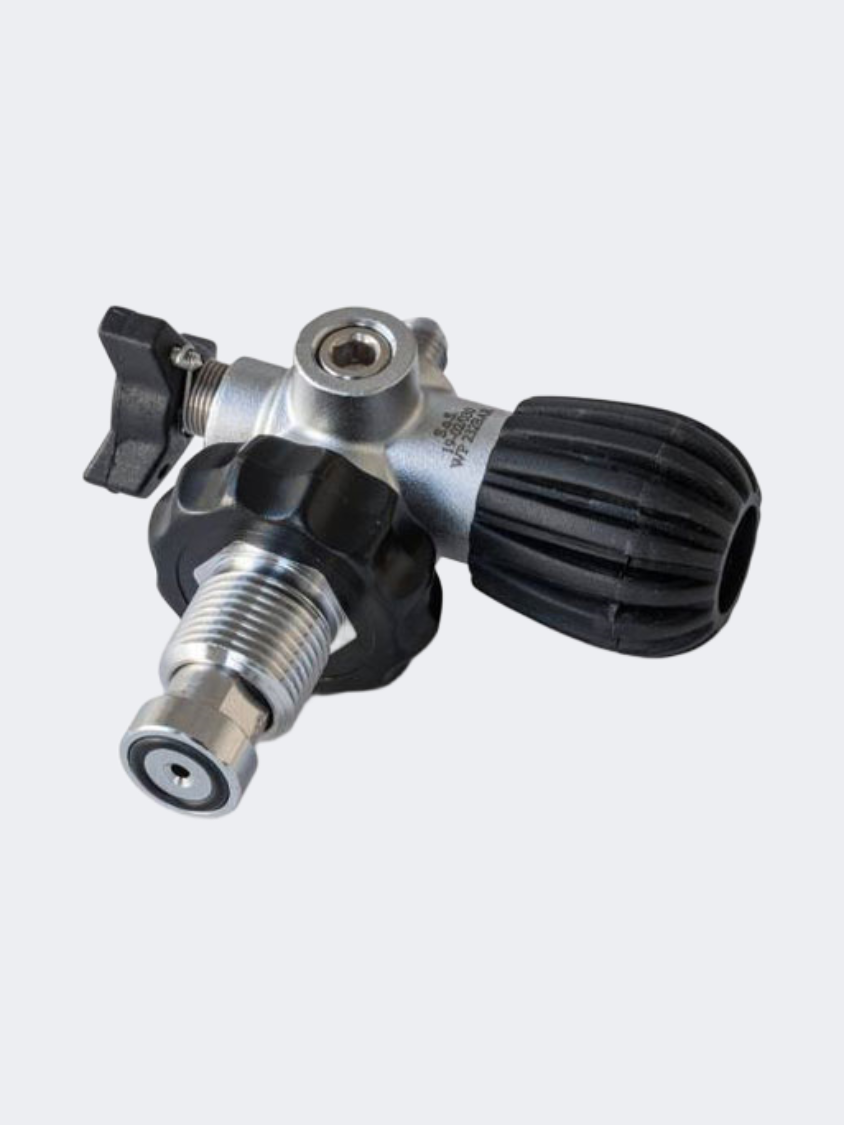

The Coltri DRV232 is a DIN scuba tank fill with on/off valve, handwheel bleed, thumb screw fitting, and a #4AN (JIC) male fitting for connection to a compressed gas source. Rated to 232 bar (3365 psi).

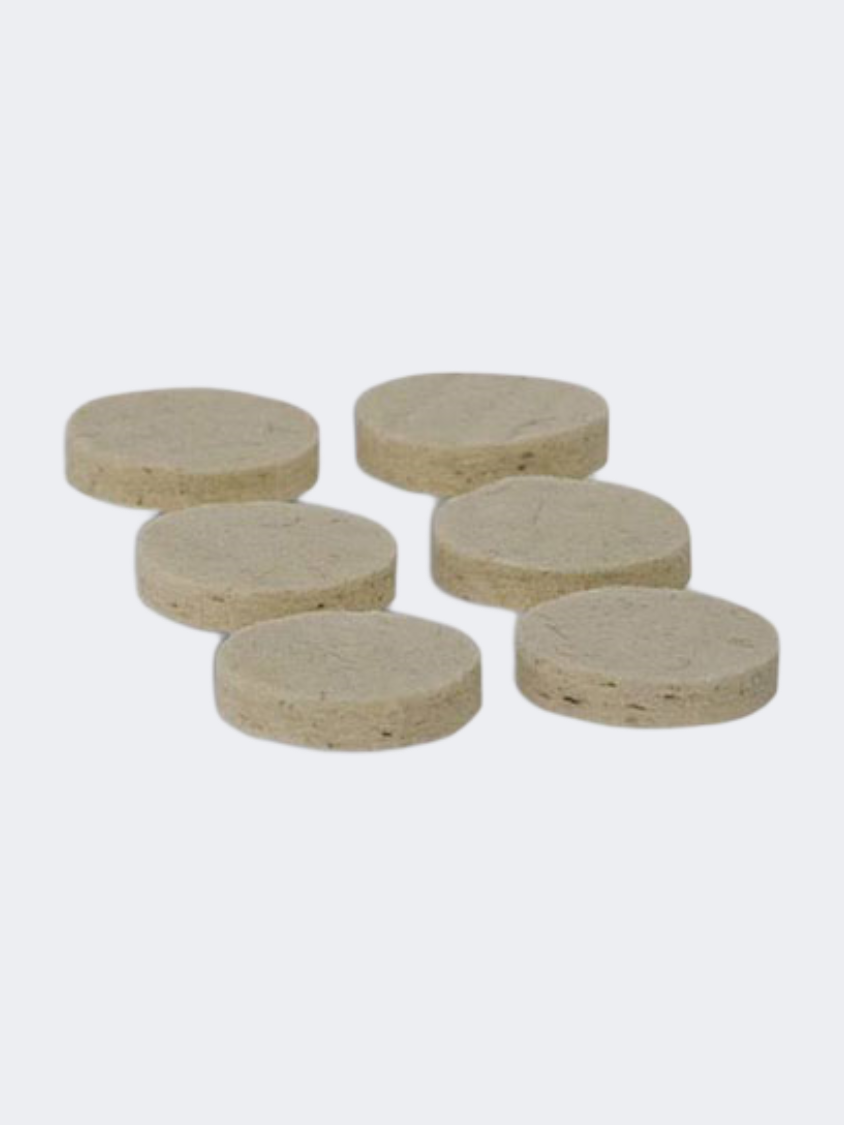

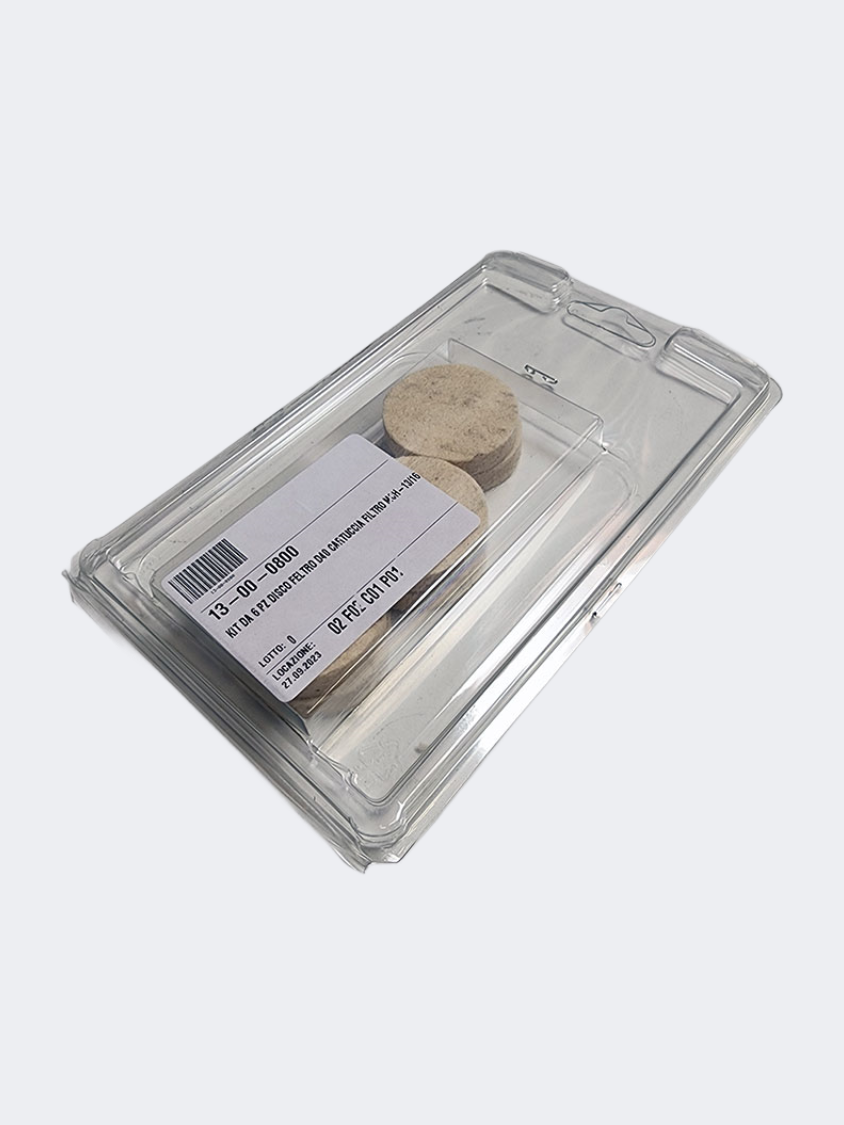

Set of six (6) felt disc pads. Described by Coltri as "MAXIFILTER FELTS KIT (6 PIECES) [KIT FELTRI PER MAXIFILTER (6 PEZZI)]" and "[KIT DA 6 PZ DISCO FELTRO D40 CARTUCCIA FILTRO MCH-13/16]."
