Trek Marlin 5 Unisex Bike Lithium Grey

(0)

~~$819.00~~ $573.00

Out of stock

Quantity

Sku: IN167686

Available in S/M/ML/L/XL

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Product Code: 5255579
Color: Lithium Grey

Specifications

*spec applies to all sizes unless otherwise noted

Frameset

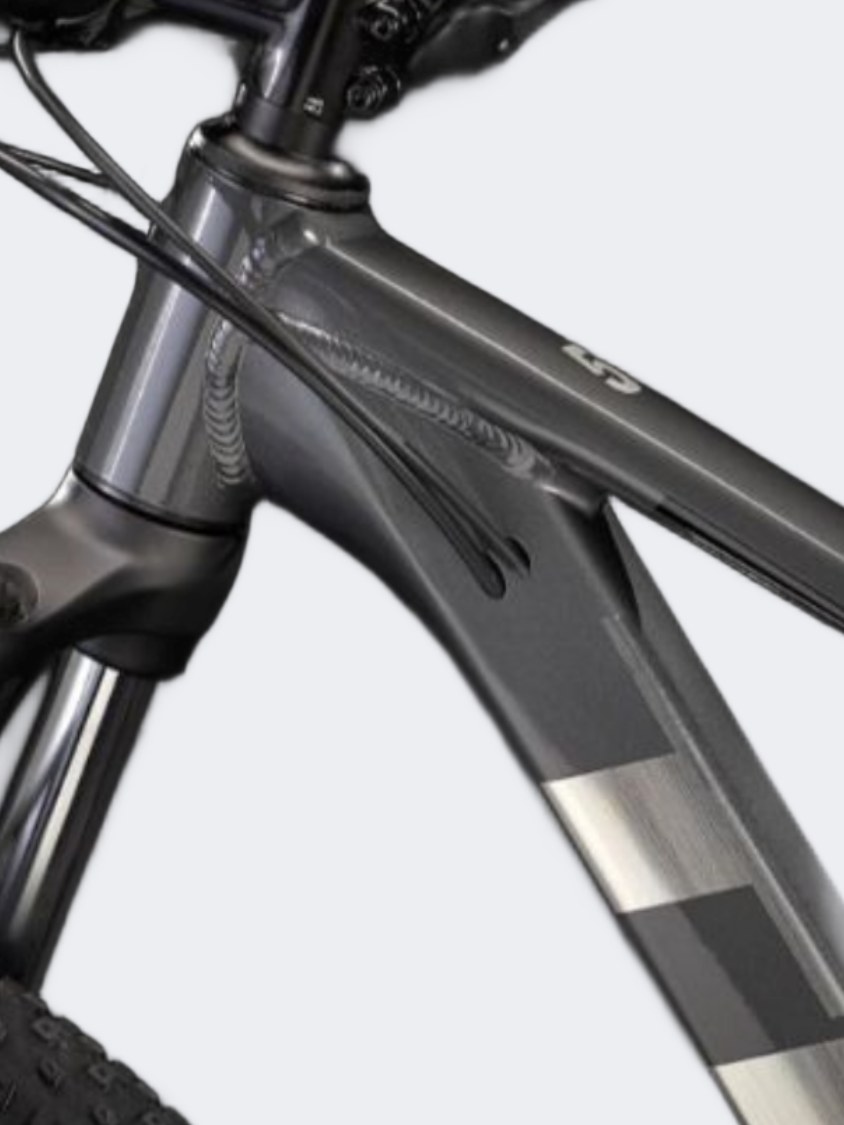

Frame	Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR

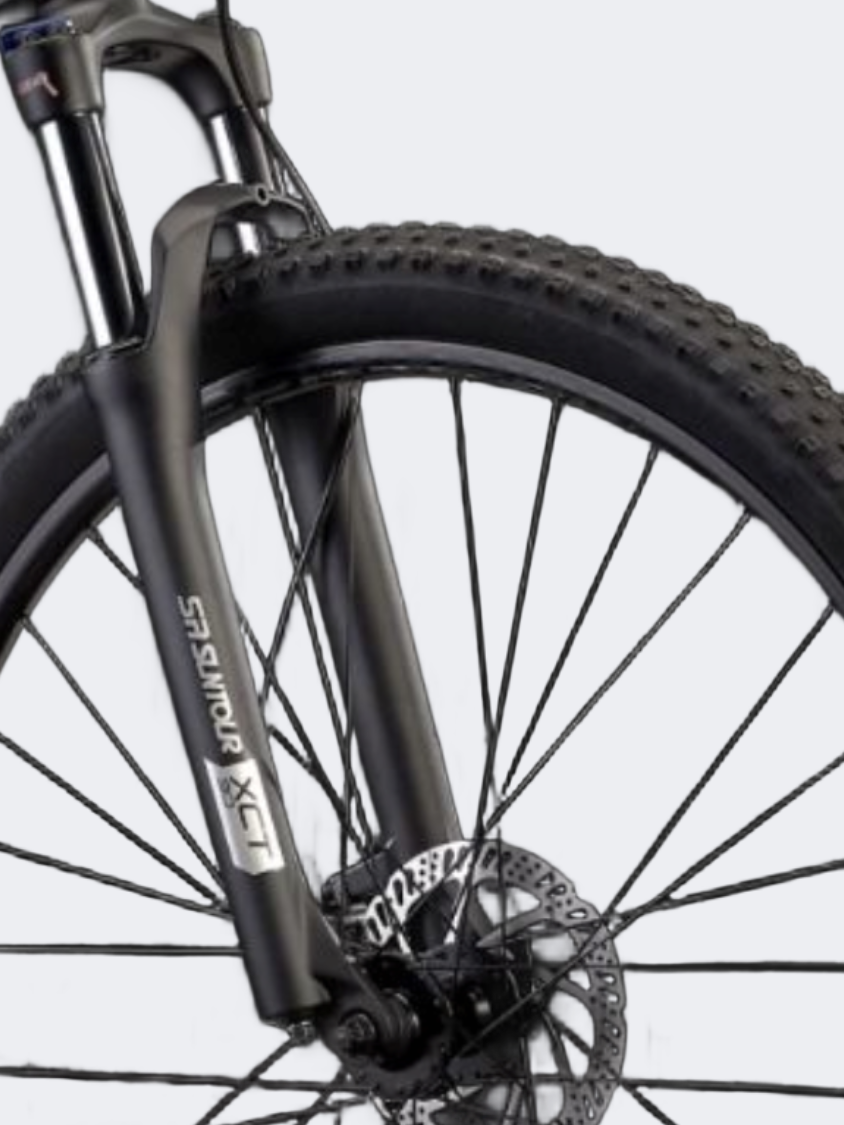

*Fork	Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel
	Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
	Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max compatible fork travel	100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Wheels

Hub front	Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
*Rim	Size: XXS Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve
*Rim	Size: XS , S , M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes	14 g stainless steel
*Tyre	Size: XXS Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20"
	Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
	Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Max tyre size	Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer

Drivetrain

Shifter	Shimano Altus M315, 8-speed
Front derailleur	Shimano Altus M315, 34.9 mm clamp, top swing, dual pull

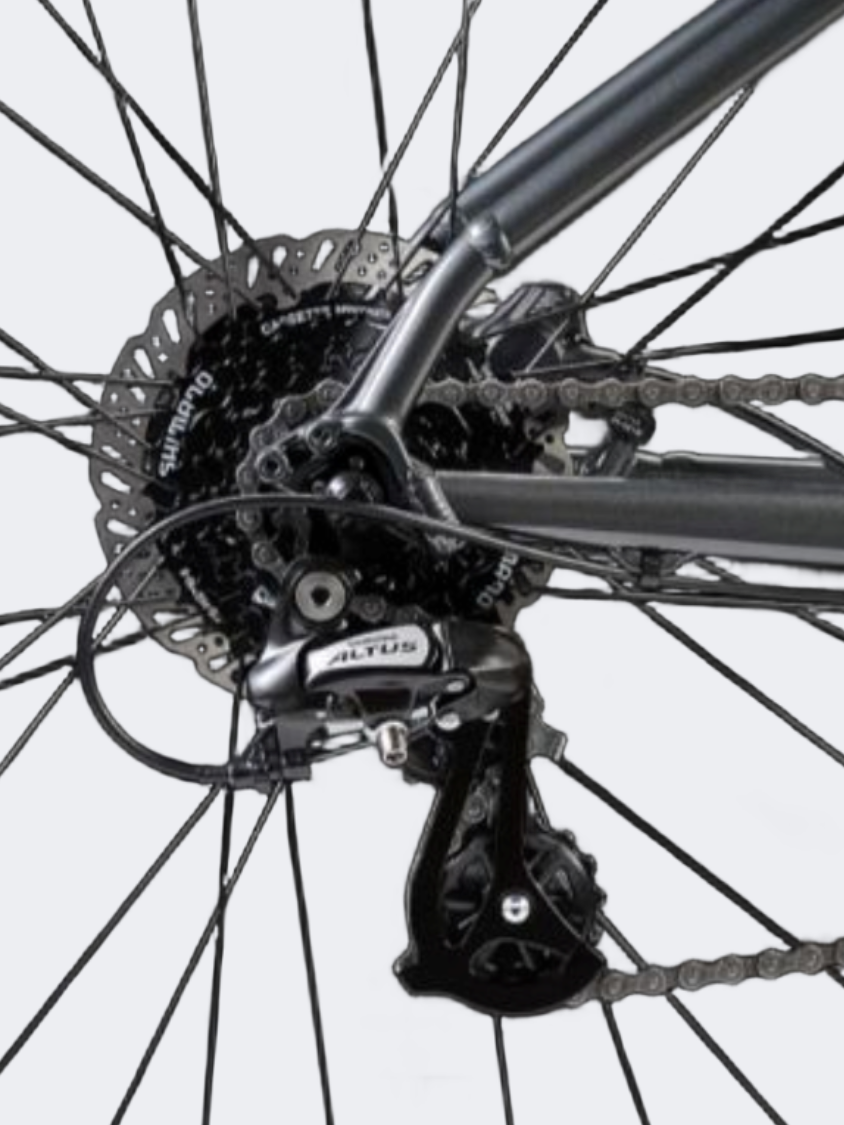

Rear derailleur	Shimano Altus M310

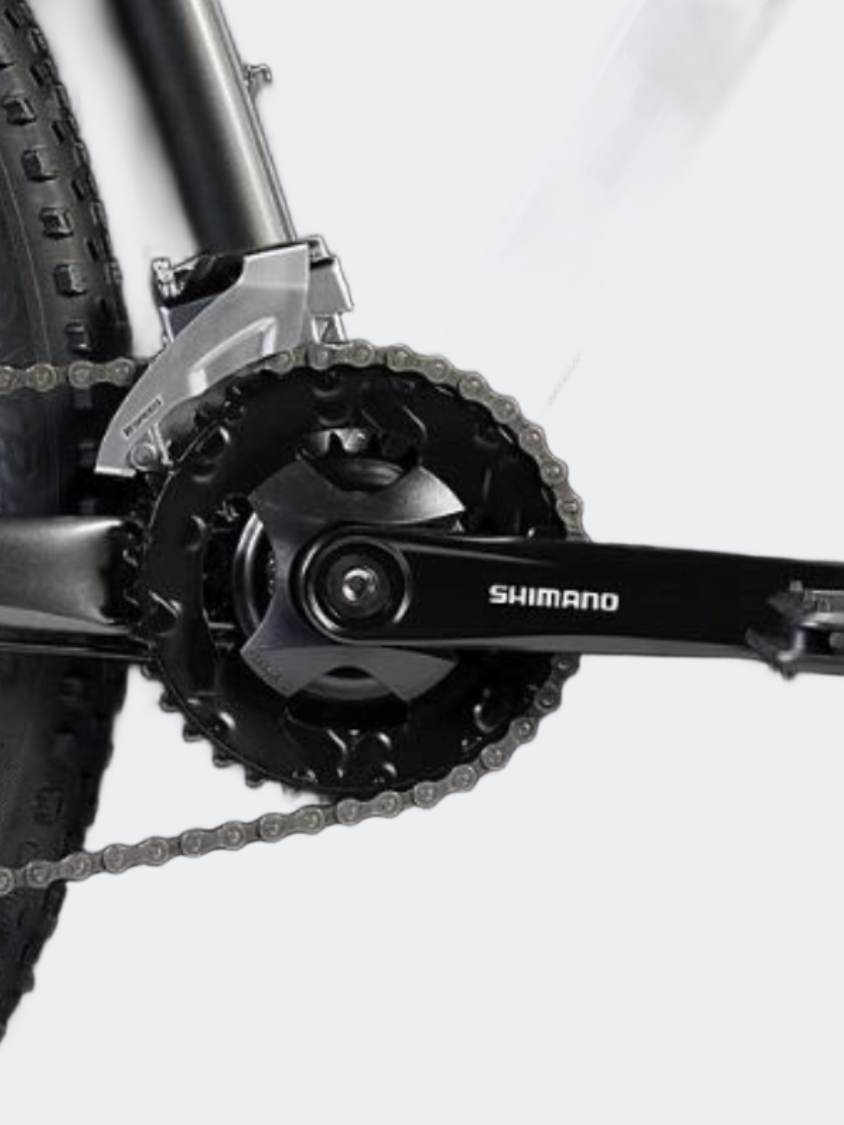

*Crank	Size: XXS Prowheel TM-CY10, 36/22, 160 mm length
	Size: XS , S , M Shimano M315, 36/22, 170 mm length
	Size: ML , L , XL , XXL Shimano M315, 36/22, 175 mm length
Bottom bracket	VP BC73, 73 mm, threaded cartridge
Cassette	Shimano 8-speed, 12-32T
Chain	KMC Z8.3, 8 speed
Pedal	VP-536 nylon platform
Max. chainring size	1x/2x: 34T, 3x: 42T

Components

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: XXS Bontrager alloy, 31.6Â mm, 12Â mm offset, 300Â mm length
	Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

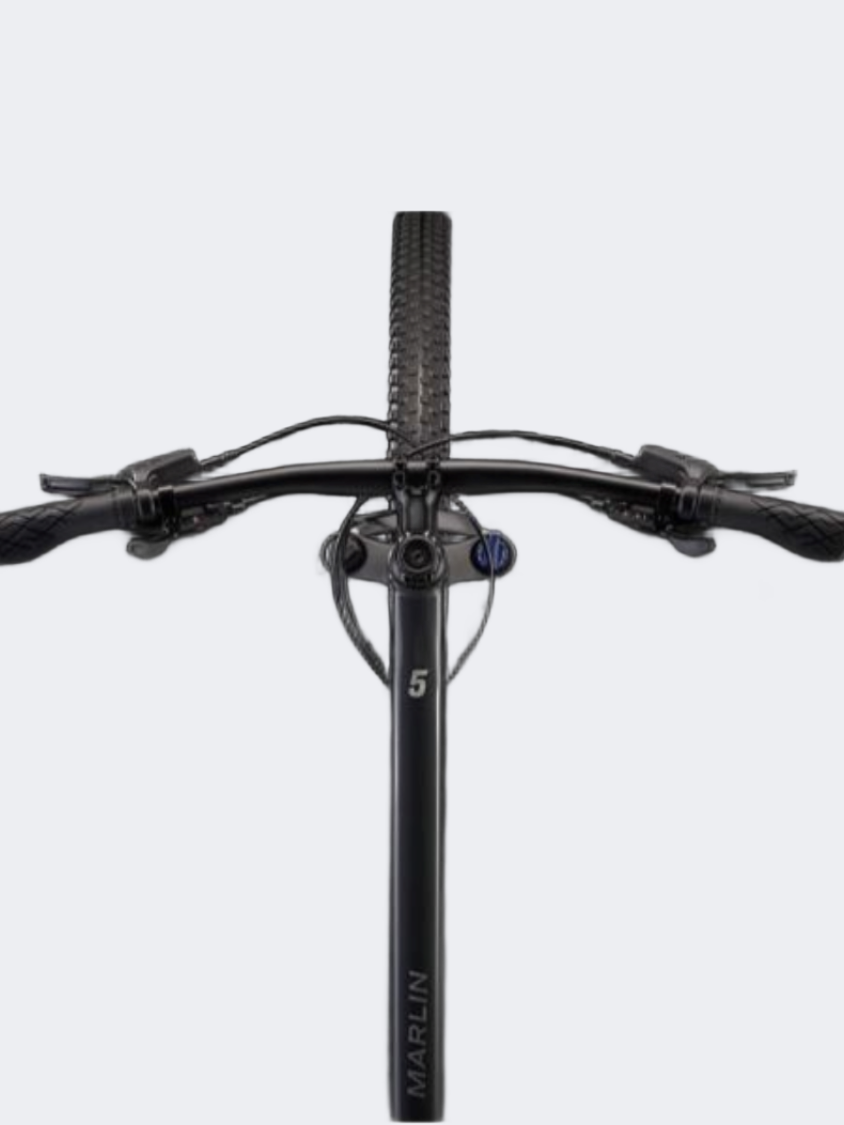

*Handlebar	Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
*Handlebar	Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips	Bontrager XR Endurance Comp
*Stem	Size: XXS Bontrager alloy, 31.8Â mm, Blendr compatible, 7 degree, 35Â mm length
	Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
	Size: S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
	Size: M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: XL , XXL Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Head set	Semi-integrated, 1-1/8"

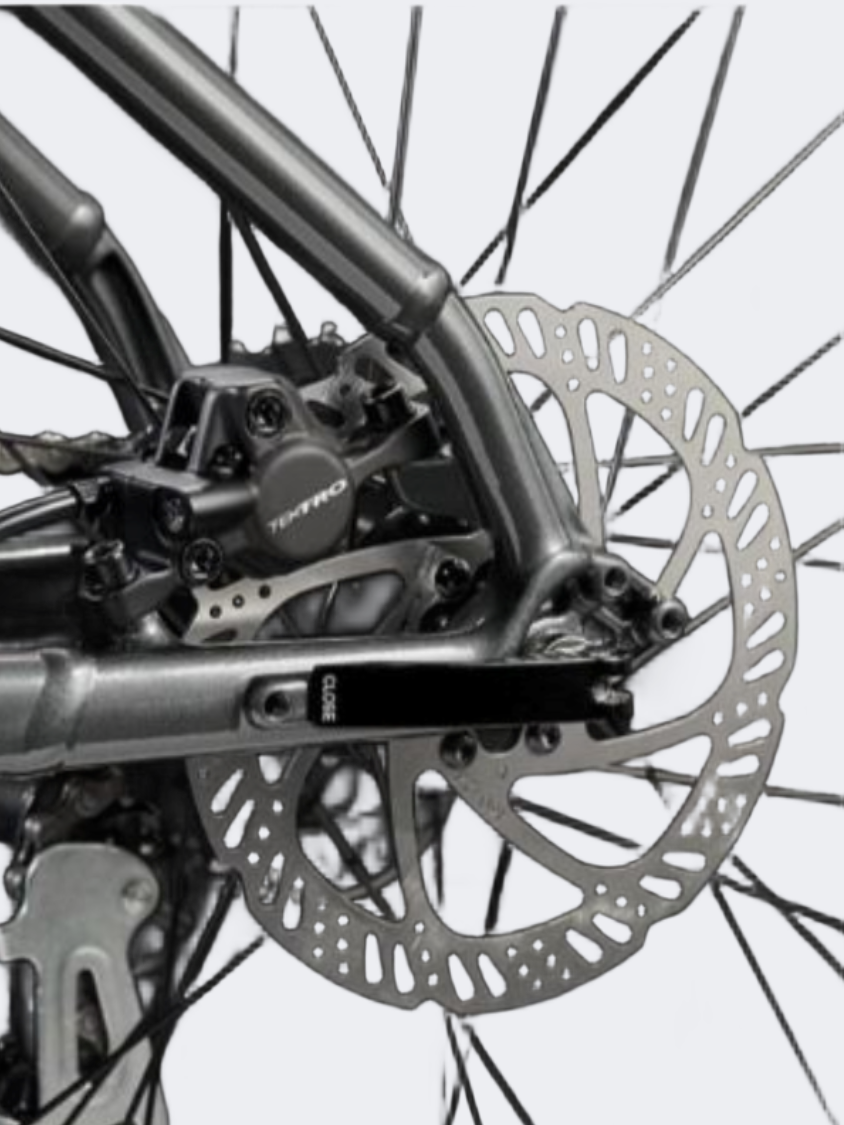

Brake	Tektro HD-M275 hydraulic disc

Weight

Weight	M - 30.80 lb / 13.9725 kg
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Sizing & Tech

Proper bike fit is essential for best performance and comfort. Any size and geometry measurements shown on trekbikes.com are for general comparison purposes only. To find your perfect fit, visit an authorised retailer, where an expert skilled at sizing will help you find the appropriate bike and size for your individual needs.

Rider Height

Inseam

2XS

134.6 - 144.7 cm

4'5.0" - 4'9.0"

63.5 - 68.33 cm

25.0" - 26.9"

145.0 - 154.6 cm

4'9.1" - 5'0.9"

68.58 - 73.41 cm

27.0" - 28.9"

155.0 - 164.75 cm

5'1.0" - 5'4.9"

73.66 - 78.49 cm

29.0" - 30.9"

165.0 - 172.5 cm

5'5.0" - 5'7.9"

78.74 - 81.03 cm

31.0" - 31.9"

M/L

172.75 - 180.0 cm

5'8.0" - 5'10.9"

81.28 - 86.11 cm

32.0" - 33.9"

180.25 - 187.75 cm

5'11.0" - 6'1.9"

86.36 - 88.65 cm

34.0" - 34.9"

188.0 - 195.25 cm

6'2.0" - 6'4.9"

88.9 - 91.19 cm

35.0" - 35.9"

2XL

195.5 - 203.25 cm

6'5.0" - 6'8.0"

91.44 - 96.52 cm

36.0" - 38.0"

All measurements provided in cm unless otherwise noted.

Â Â Â Â Â Â Â

Frame size number	Frame size letter	Wheel size	A â€”Â Seat tube	B â€”Â Seat tube angle	Effective seat tube angle	C â€”Â Head tube length	D â€”Â Head angle
